Miejsce pochodzenia: | Jiangsu, Chiny (kontynent) |
Nazwa handlowa: | Jkongmotor |
Orzecznictwo: | CE, ROHS,ISO9001 |

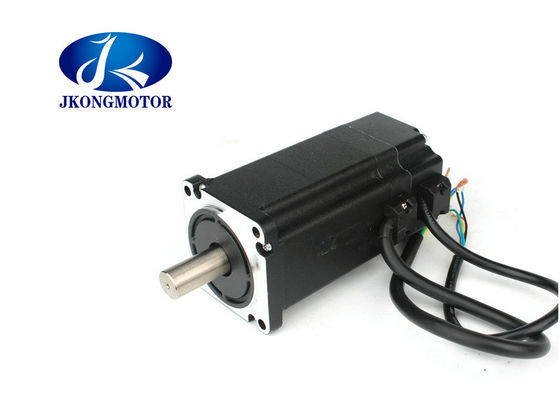

Numer modelu: | JK60BLS01 |
Minimalne zamówienie: | 3-10 SZTUK |
---|---|
Cena: | US $16-25.5 / Units | 3 Unit/Units (Min. Order) |
Szczegóły pakowania: | z kartonem eksportowym. duża ilość z paletą |
Czas dostawy: | Dla próbek, 7-15 dni / Dla partii, 15-25 dni |
Zasady płatności: | T / T, paypal, Western Union, L / C |
Fazy: | 3, 3-fazowy | typu: | Hybrydowy |
---|---|---|---|
Kąt kroku (stopnie): | 1,8 stopnia | Trzymając Torque: | 0,3NM |
Aktualna / faza: | 2,8A | Długość silnika: | 78 mm |
Zakres napięcia: | 48V | odpowiedni silnik: | nema 24 silnik krokowy |
High Light: | bldc motor,micro brushless dc motor |
Genaral Specification:
Item | Specification |
Winding type | Star |
Hall effect angle | 120 degree electrical angle |
Shaft run out | 0.025mm |
Radial play | 0.02mm@450g |
End play | 0.08mm@450g |
Max.radial force | 115N @20mm form the flange |
Max.axial force | 45N |
Insulation class | Class B |
Dielectric strength | 500VDC for one minute |
Insulation resistance | 100MΩ Min.,500VDC |
Electrical Specification:
Model | |||||
Specification | Unit | JK60BLS01 | JK60BLS02 | JK60BLS03 | JK60BLS04 |
Number Of Phase | Phase | 3 | |||
Number Of Poles | Poles | 8 | |||
Rated Voltage | VDC | 48 | |||
Rated Speed | Rpm | 3000 | |||
Rated Torque | N.m | 0.3 | 0.6 | 0.9 | 1.2 |
Rated Current | Amps | 2.8 | 5.2 | 7.5 | 9.5 |
Rated Power | W | 94 | 188 | 283 | 377 |
Peak Torque | N.m | 0.9 | 1.8 | 2.7 | 3.6 |
Peak Current | Amps | 8.4 | 15.6 | 22.5 | 28.5 |
Back E.M.F | V/Krpm | 12.1 | 12.6 | 12.4 | 13.3 |
Torque Constant | N.m/A | 0.116 | 0.12 | 0.118 | 0.127 |
Rotor Inertia | Kg.cm^2 | 0.24 | 0.48 | 0.72 | 0.96 |
Body Length | mm | 78 | 99 | 120 | 141 |
Weight | Kg | 0.85 | 1.25 | 1.65 | 2.05 |
Sensor | Honeywell | ||||
Insulation Class | B | ||||
Degree of Protection | IP30 | ||||
Storage Temperature | -25~+70℃ | ||||
Operating Temperature | -15~+50℃ | ||||
Working Humidity | 85% or under 85% RH(non condensing) | ||||
Working Environment | outdoor(no direct sunlight),Non-corrosive Gas, Non-inflammable gas, No oil fog, No dust |
||||
Altitude | 1000m or under 1000m |
Products of special request can be made according to the customer request !
Further More Information
Q1: What about your warranty?
A: We guarantee is one year . for sea order . is 15months.
Q2: Do you have any certificates?
A: Yes, we have. All the motors have been approved by CE and Rohs.
Q3: Do you offer OEM AND ODM service?
A: Yes. We can supply OEM andmake customized design for any specific application.
Q4: How can be your brand distributor?
A: We will check your capacity and help you promote and expand the market.
Q5: What's the delivery time ?
A: Except special order. For samples usually 10-14 working days . for batch order . usually 20-25days.
